Component (ypbpr) to HDMI adapter

37,00 με ΦΠΑ

Μετατροπέας εικόνας και ήχου από component  to hdmi

YPBPR to HDMI converter Color difference to HDMI ypbpr to hdmi RGB to HDMI converter.



The product description.

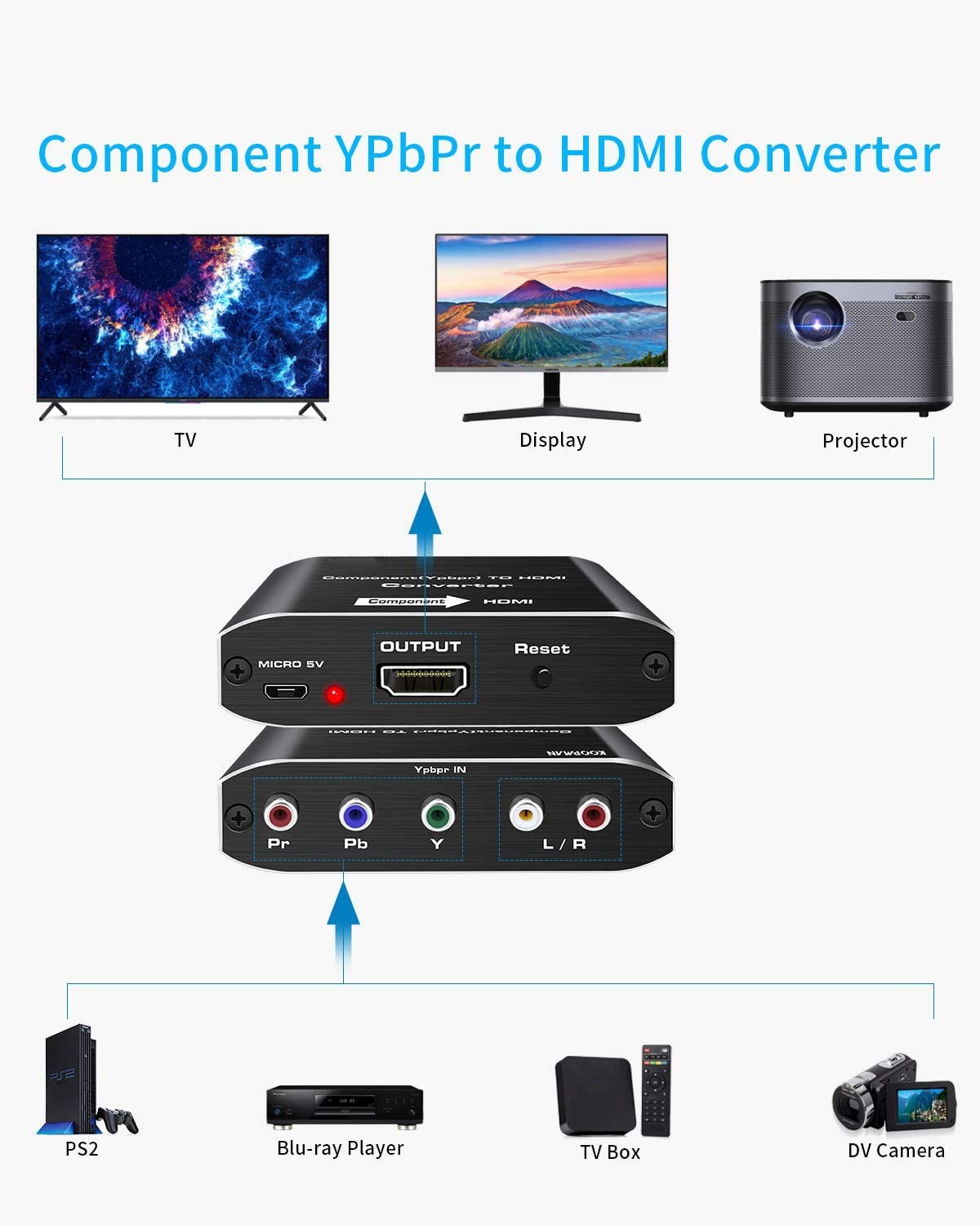

It converts YPbPr (chroma) and left and right channels to HDMI output, supports Full HD 1080P resolution, and allows PC users to present their image not only on the PC’s display, but also on TV, converting with R/L audio. Converters offer solutions for digital entertainment centers, HDTV retail and display venues, HDTV, set-top boxes, DVD and projector factories, noise space and security issues, data center control, information distribution, conference room presentations, school and enterprise training environments.



Product characteristics.



The HDMI converters in this series have many features that make them perform in an excellent way. Among these features, you’ll find:

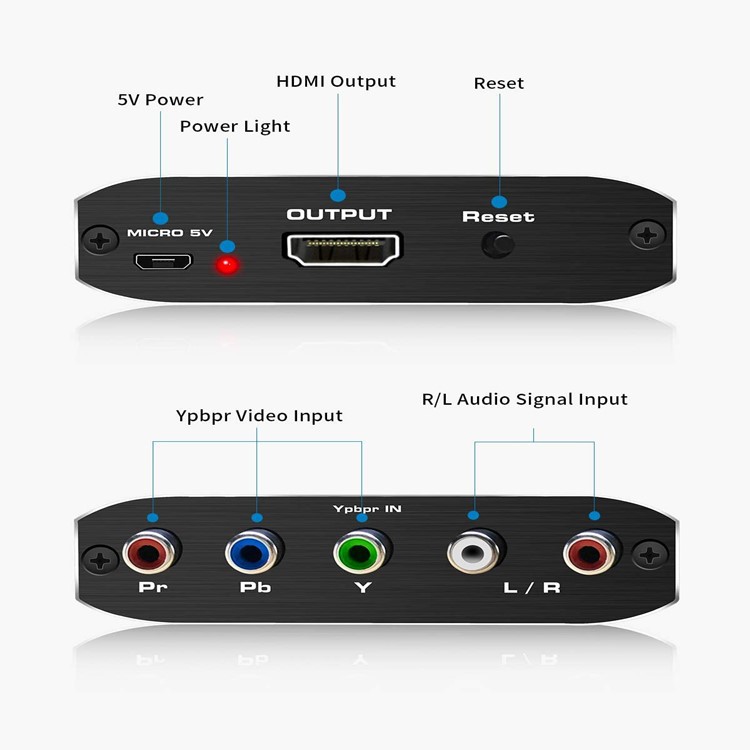

1, easy to use: installed in seconds without setting up. 2, it can convert the full YPbPr-L/R audio to HDMI output.
3. HDCP1.2
4, 165MHz/1.65Gbps (6.75Gbps all channels) bandwidth HDMI output per channel.
5, support real analog video output up to UXGA and 1080p, 10-bit
DAC 6, LED indication signal and power mode.
7, power supply (5V 1A).





Product accessories.

Color difference to HDMI converter ————— 1.

The DC 5V power adapter —————– one.

The user manual ———————— 1 book.



Product technical parameters.



Signal Inputs/Output.

Input Video Signal.

0.5-1.0 volts p-p.

Input DDC Signal.

5 volts p-p (TTL)

MaximumSingleLinkRange.

1600X1200, 1080P.

Output Video.

HDMI and HDCP1.0/1.1.

YPbPr.

640×480 60Hz 72Hz 75Hz.

800×600 60Hz 72Hz 75Hz.

1024×768 60Hz 70Hz 75Hz.

1280×1024 60Hz.

1600×1200 60Hz.

DTV/HDTV.

480i/576i/480p/576p/720p/1080i/1080P.

Operating Frequency.

Frequency.

Up to165MHz.

Video Amplifier Bandwidth.

1.65Gpbs/165MHz.

Resolutions (HDTV)

Interlaced (50 samp;60Hz)

480i, 576i, 1080i.

Progressive (50 and 60Hz)

480p, 576p, 720p, 1080p.

Mechanical.

Size (LxWxH)

88x68x25.5mm.

Weight (Net)

0.68Kg.

Security.

Limited Security.

1 Year Parts and Labor.

Environmental.

Operating System.

0 to 70 degrees C.

Operating Humidity.

10% to 85 % RH (no nationality)

Storage System.

-10 to 80 degrees C.

Storage Humidity.

5% to 95 % RH (no center)

Power Requirement.

External Power Supply.

DC 5V 1A.

Regulatory Approvals.

Converter Unit.

CE, FCC, ROHS.

Power Supply.

CE, FCC, PSE, TK, UL.

Accessories Adapter.

AC Power Adapter.

US standard, EU standard and so on.

User Manual.

English Version.





YPBPR and Audio R/L to HDMI converter.

This is a component video (YPbPr) converter. It converts YPbPr input into HDMI output. The conversion is along with the R/L audio. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



This HDMI converter has many features that enable it to perform in a superior manner. Among those features you will find:
1, Easy to Use: Install in seconds, no need of setting.
2. Conversion: It can convert YPbPr video and R/L audio into complete HDMI.
3, Supports highest video resolution up to 1080p
4, Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
5, Supports 8bit per channel (24bit all channel) deep color.

6, Supports uncompressed audio such as LPCM.

7, Supports compressed audio such as DTS digital, dolby digital (including DTS-HD and dolby true HD)
